Multi Position - Horizontal

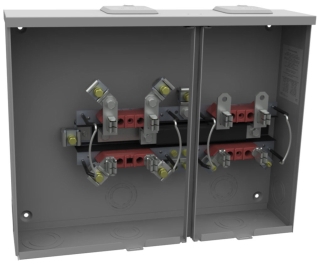

Milbank U2601-XL is a two-position ringless meter socket with a 200A left meter position and a 100A right meter position. It is rated 300 VAC, single phase, with four terminals per position and no bypass. The end-wireway enclosure accepts overhead or underground cable entry. No main breaker is included.

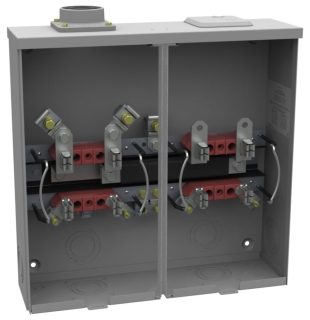

Milbank U7362-DL is a 2-position ringless meter socket rated 100A per position and 300 VAC. It has four terminals at each meter position, no bypass, and overhead service entry.

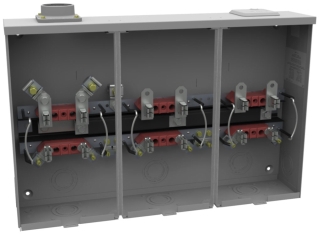

Milbank U7363-DL is a 3-position ringless meter socket rated 100A per position and 300 VAC. It has four terminals at each meter position, no bypass, and overhead service entry.

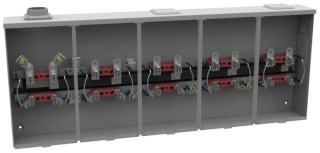

Milbank U7365-DL five-position 100 Amp meter socket for grouped residential metering where five tenant services are required.

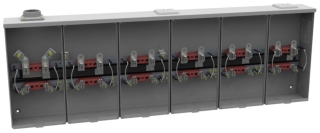

Milbank U7366-DL six-position 100 Amp meter socket for grouped residential metering where six tenant services are required.

Milbank U1252-X-K1 is a two-position ringless meter socket listed in Milbank’s 200 A-per-position, 300 V multi-position socket table. The catalog specifies four terminals per position and overhead or underground service entry.

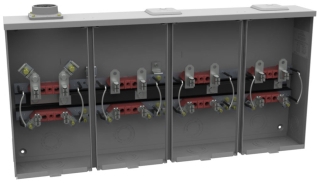

Milbank U7364-DL is a four-position, ringless meter socket rated 100 A continuous at 300 VAC, single-phase. The exact product sheet specifies four terminals per position, a 2-inch hub, overhead entry and no bypass.
