TYPE LB's

Fitting LB1SSCG LB-style threaded conduit body for 1/2 Inch rigid, IMC or EMT conduit, supplied with gasketed cover for pulling and splicing conductors in tight locations.

Fitting LB5SSCG LB-style conduit body for 1-1/2 Inch rigid, IMC or EMT conduit, shipped with gasketed cover to provide an accessible pull point.

Fitting LB2SSCG LB-style conduit body for 3/4 Inch rigid, IMC or EMT conduit, with screw cover and gasket to provide an accessible wireway in directional runs.

Fitting LB3SSCG LB-style conduit body for 1 Inch rigid, IMC or EMT conduit, threaded hubs with gasketed screw cover for conductor access.

Fitting LB6SSCG LB-style conduit body for 2 Inch rigid, IMC or EMT conduit, supplied with cover and gasket to allow wire pulling and splicing at direction changes.

Fitting LB4SSCG LB-style 1-1/4 Inch conduit body for rigid, IMC or EMT conduit, threaded hubs with gasketed cover for directional changes and splices.

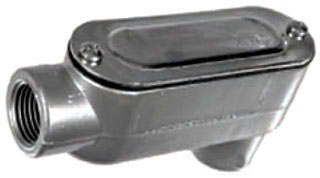

TLB-25CG, 2-1/2 Inch aluminum LB-style threaded conduit body for rigid or IMC conduit. Provides 90-degree change of direction with pull access; threaded hubs with gasketed cover for weathertight installations.

ESLB-30CG, 3 Inch aluminum LB-style set-screw conduit body for EMT. Provides 90-degree change of direction with conductor access; die-cast body with set-screw hubs, removable cover, and gasket.

ESLB-25CG, 2-1/2 Inch aluminum LB-style set-screw conduit body for EMT. Provides 90-degree change of direction with conductor access; die-cast body with set-screw hubs, removable cover, and gasket.

ESLB-40CG, 4 Inch aluminum LB-style set-screw conduit body for EMT. Provides 90-degree change of direction with conductor access; die-cast body with set-screw hubs, removable cover, and gasket.
