Service Entrance WET Connector

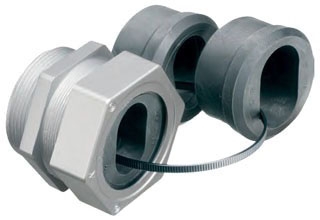

WTC210 is a 2 inch trade-size zinc gland-type connector for service-entrance cable. It includes 3 interchangeable glands for selecting the appropriate cable fit.

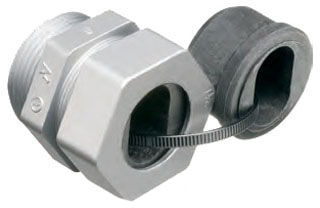

WTC125 is a 1-1/4 inch trade-size zinc gland-type connector for service-entrance cable. It includes 2 interchangeable glands for selecting the appropriate cable fit.

Die-cast zinc 1 Inch two-screw service-entrance cable connector; clamp-type for 1 Inch knockout openings with locknut, suitable for interior terminations to panels or junction boxes.

Zinc die-cast 2 Inch two-screw clamp connector for NM or SE round service-entrance cable; secures cable to 2 Inch knockout and bonds to box with included locknut.

Zinc die-cast 1-1/4 Inch two-screw service-entrance cable connector; clamps cable jacket and mounts in 1-1/4 Inch knockouts with included locknut.

Two-screw zinc die-cast connector for one NM or service-entrance cable at a 1-1/2-inch knockout. The clamp secures the cable at the enclosure entry; the maximum opening is 0.960 inch.

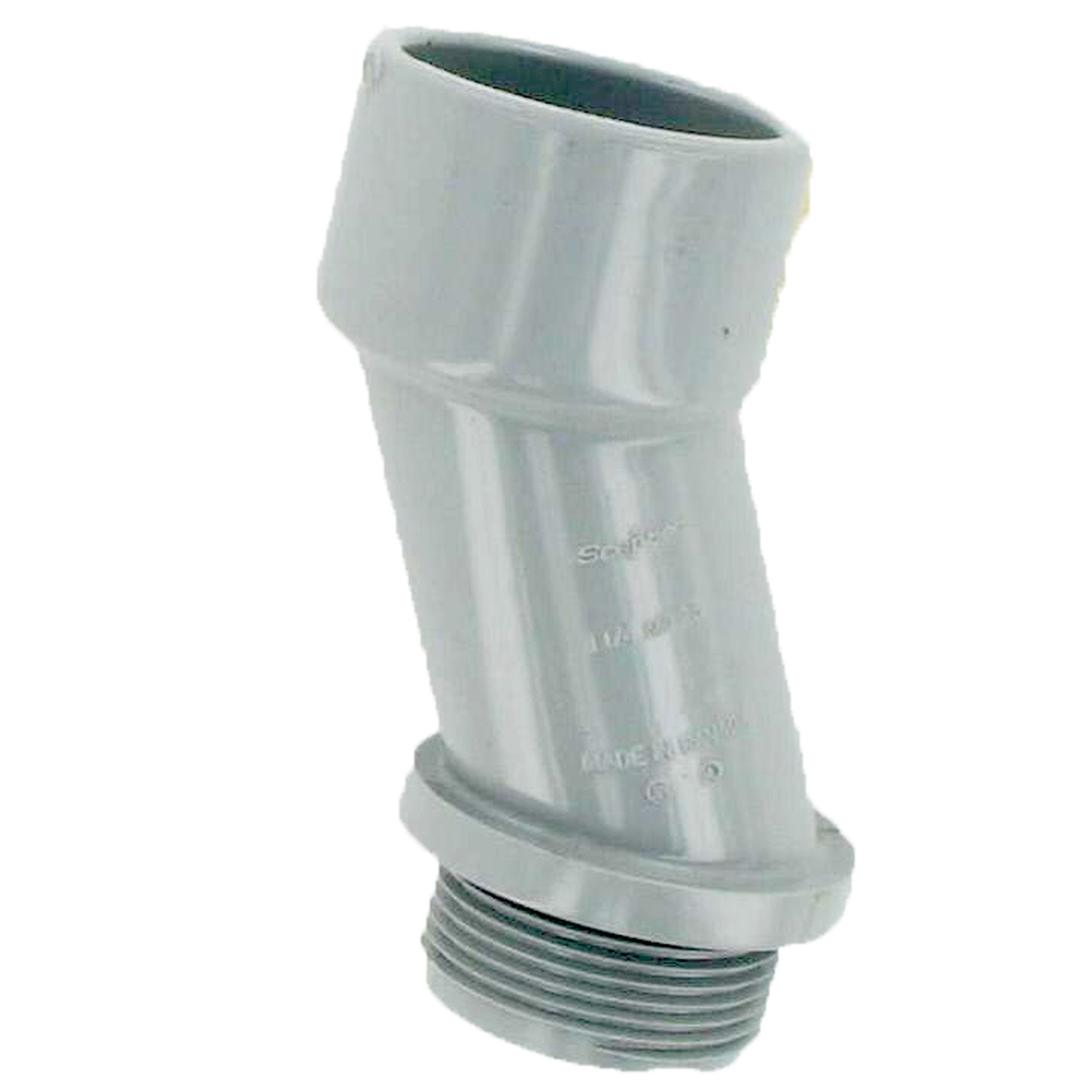

PVC offset nipple, 1-1/4 Inch trade size; provides alignment offset between meter hub and conduit entry in service entrance applications.

WTC150 is a 1-1/2-inch die-cast zinc service-entrance cable connector. It includes two letter-coded glands for selecting the appropriate cable fit.

WC1006 is a zinc die-cast gland-type service-entrance cable connector with a 1 in trade size. Its grommet has a cataloged minimum opening of 0.40 × 0.71 in and maximum opening of 0.50 × 0.77 in.

ARL WC1004 1-IN WT SEC CONN 1-IN WT SEC CONN
