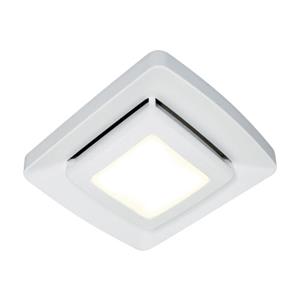

• BNH FG500NS

  • LED Grille Upgrade for Ventilation Fans

  • NuTone FG500NS is a unique lighted ventilation fan grille which allows you to upgrade your non-lighted ventilation fan or tired incandescent fan/light into a sleek fan/light with bright, efficient LED lighting quickly and easily. This lighted grille is designed with fewer ventilation slots to stay clean longer and is a crisp, bright white to coordinate with today’s popular ceiling paint colors. Installation can be completed in 5 minutes or less thanks to a quick connect pass-thru plug. No extra wiring is required and the grille is sized just right to conveniently cover existing dry wall cuts for an easy, no cut install.

  • Price: 45.98
  • Item Id:
    BNHFG500NS
  • MFG Part #:
    FG500NS
  • Vendor:
    BROAN MFG NUTON OR EQUITY EDN
  • Unit Size:
    1
  • Packaging:
    EA
  • Crown Supply - Providence - RI - In Stock
  • Crown Supply - Milford - MA - Call for availability
  • Crown Supply - Webster - MA - Call for availability
  • Corrosion-resistant white finish designed to coordinate with the most popular white ceiling paint colors
  • Soft LED lighting illuminates darker areas of the bathroom
  • 750 Lumens
  • 3000K Color Temperature
  • Rated Life of 25,000 hours
  • UL approved for use with the following current and legacy models: NuTone 695, 763, 6950, 50NT, 684NT, 696N, 696N0, 763N, 763NC, 80NT, 80NTE, HD50LNT, HD50NT, HD80LNT, HD80NT
  • Nautilus N671, N676, N678, N679, N680, N688
  • Broan 576, 670, 671, 674, 676, 678, 679, 680, 683, 684, 688, 689, 770, 771, 784, 679L, 683C, 683L, E050, E070, ED50L, HD50, HD50L, HD80, HD80L
  • ABC Co. NCF80, Acme VQ50, VQ80, and more.
  • Color
    White
  • Grille Finish
    White Polymeric
  • Grille Length
    11"
  • Width
    9-3/4"
  • Housing Dimension LxWxH
    7-1/2" x 7-1/4" and 8-1/4" x 8"
  • Light Bulb Quantity
    Integrated LED Module
  • Light Bulbs Included
    Yes
  • Lighting Type
    LED
  • Rated Amps
    0.15 (Add to fan Amps for total current draw)
  • Room-Side Installation
    Yes
  • UL Listed
    Yes
  • Grille Dimensions
    11" x 9-3/4" x 2"
